TEM grids銅網
Gilder Grids are world renowned for their high quality grids and a firm favourite of EM Resolutions Ltd for making our support films and coated grids. Available in Copper, Copper/Palladium, Nickel, Gold and Molybdenum
Grid design | Grid type | Applications |
---|---|---|
![]() |

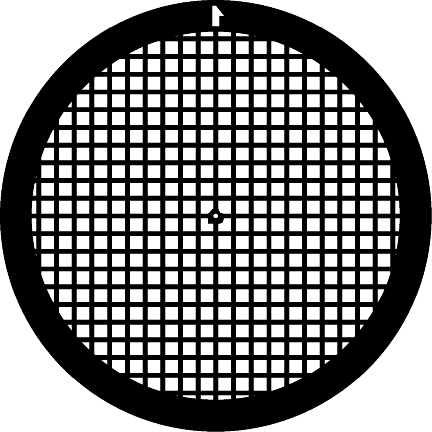

Square mesh grids |
The standard grid type for a wide range of TEM applications a range of mesh sizes from 50 - 600. |
![]() |
Hexagonal mesh grids |
An excellent alternative to the square mesh grid pattern.A hexagon pattern gives greater strength making it a good choice for routine use. |
![]() |
Slot grids |
Useful as a support for serial sections where grid bars would obscure section detail.Select from the range of slot sizes to suit the width of the sections. |
![]() |
TEM finder grids |
Used for locating particles and enabling return to a previously viewed location.Available in a range of patterns. |
![]() |
Fine mesh grids |
Exceptionally fine mesh from 1000 to 2000. Available is both square and hexagonal mesh.Can be useful for viewing particles for cryo-TEM. |
![]() |
Folding grids |
Sometimes known as Oyster or sandwich grids.These are useful for materials and large particles that do not adhere to a flat grid surface and need to be sandwiched between two grid meshes. |
![]() |
Aperturegrids | Aperture or hole grids as they are sometimes known come with a range of single hole sizes. |
![]() |
Gridboxes | Grid boxes keep grids protected both for routine handling and storage. Their ease of use makes them ideal for handling and viewing grids and the high packing density and compact flat shape make them well suited to long term storage. |
